Most-Advanced Automatic Rope Ball Winder

Short Description:

Rope ball winding machine is used to wind different filaments and yarns into ball shape. The shape and size of the ball is adjustable. The whole process is fully automatic and of high speed. KHMC provides 2 types of balling machines, with shared and independent controlling system separately.


  • Function: Rewinder of rope
  • Finished product shape: Ball shape, Roll shape, Olive shape, Cross shape
  • Product Detail

    Product Tags

    Technical Parameters

    Type

    FA-D50

    FA-D200

    FA-D500

    FA-D1000

    FA-D2000

    FA-D5000

    Max Size

    170*170mm

    170*170mm

    170*170mm

    170*170mm

    300*300mm

    500*500mm

    Ball Weight

    ≦50g

    ≦200g

    ≦500g

    ≦1000g

    ≦2000g

    ≦5000g

    Motor Power

    540w

    540w

    540w

    540w

    1.1kw

    1.5kw

    Rotation Rate

    1500-4500r/min

    1500-4500r/min

    1500-4500r/min

    1500-4500r/min

    1450r/min

    1450r/min

    Weigh for 1pc

    110kg

    110kg

    110kg

    110kg

    180kg

    230kg

    Size for 1pc

    800*460*850mm

    800*460*850mm

    800*460*850mm

    800*460*850mm

    830*490*1000mm

    850*510*1000mm

    Applicable materials

    Filament, wool, paper, cotton , etc.

    Plastic, fiber, wool, cotton, paper, etc.

    Plastic, fiber, wool, cotton, paper jute etc.

    Plastic, fiber, wool, cotton, paper jute etc.

    Plastic, wool, cotton, paper jute, tape, etc.

    Cloth tape, filber strap. etc

    Function

    The ball winding machine is suitable for producing balls with flat rope, paper rope, nylon rope, jute rope, woolen thread, cotton thread, cloth strip, etc.

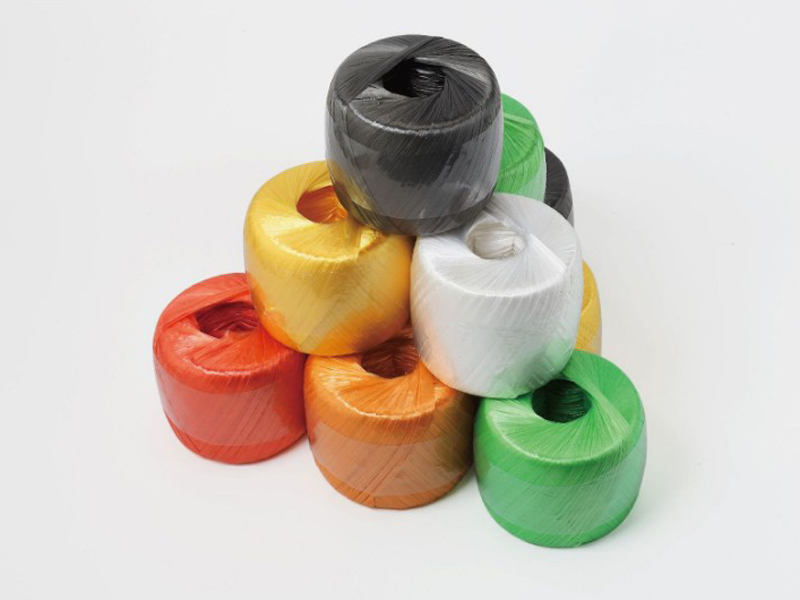

    a.-rope-ball-machine

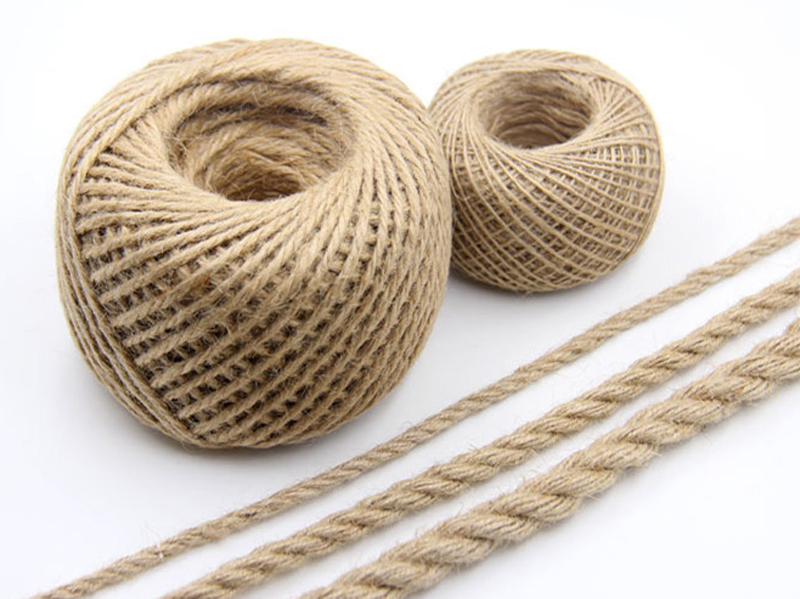

    b.-jute-ball-making-machine

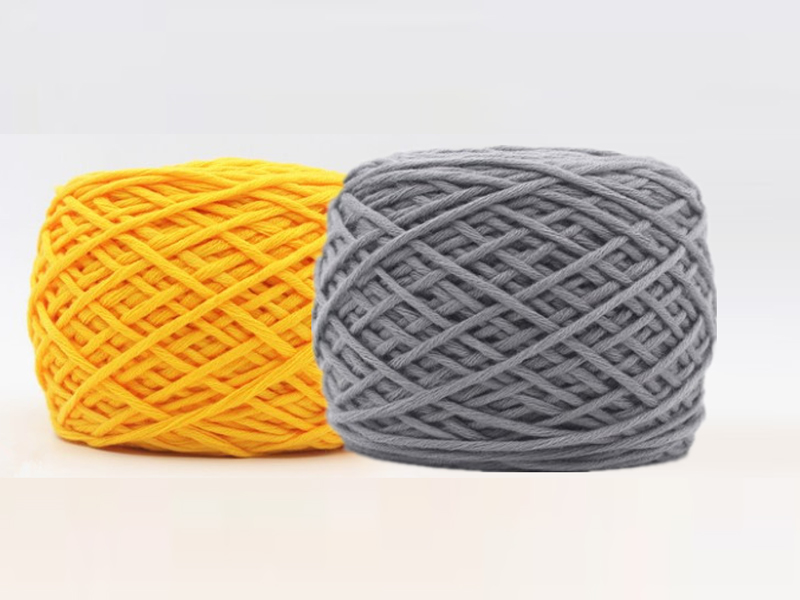

    c.-cotton-ball-making-machine

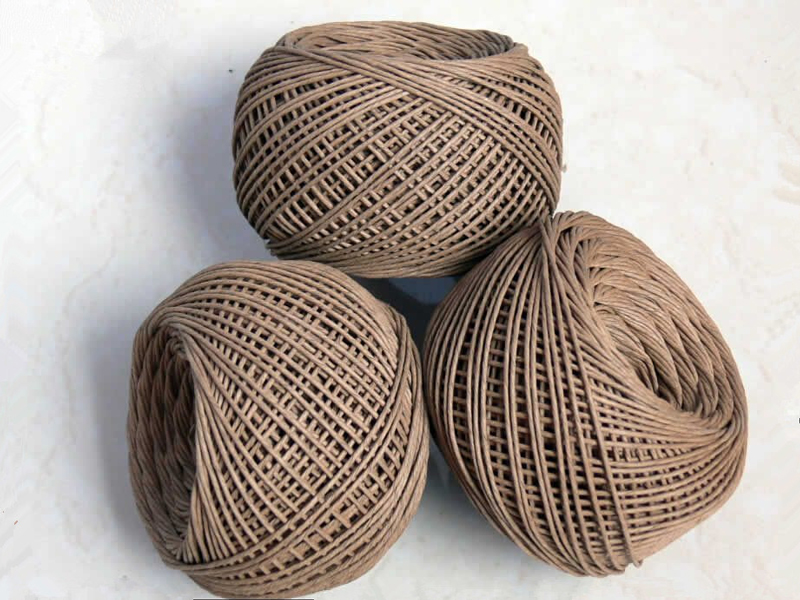

    d.-paper-ball-making-machine

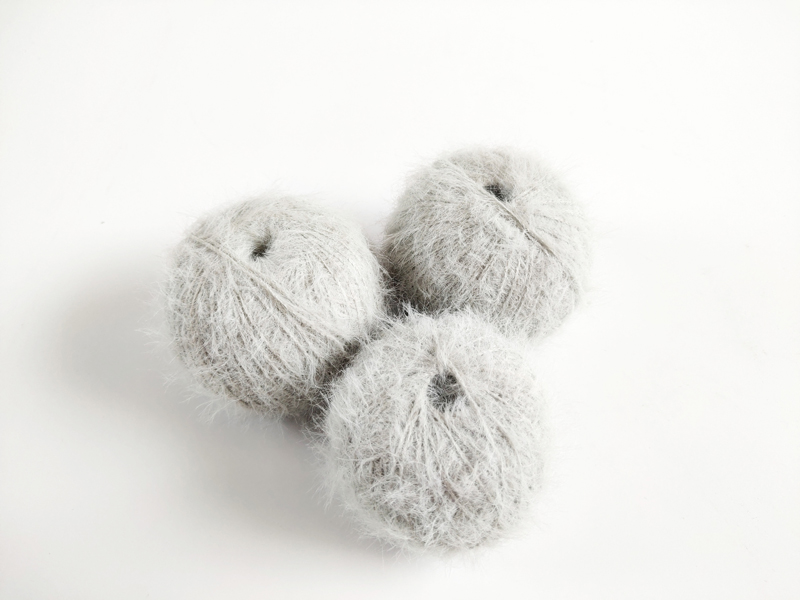

    e.-woolen-ball-making-machine

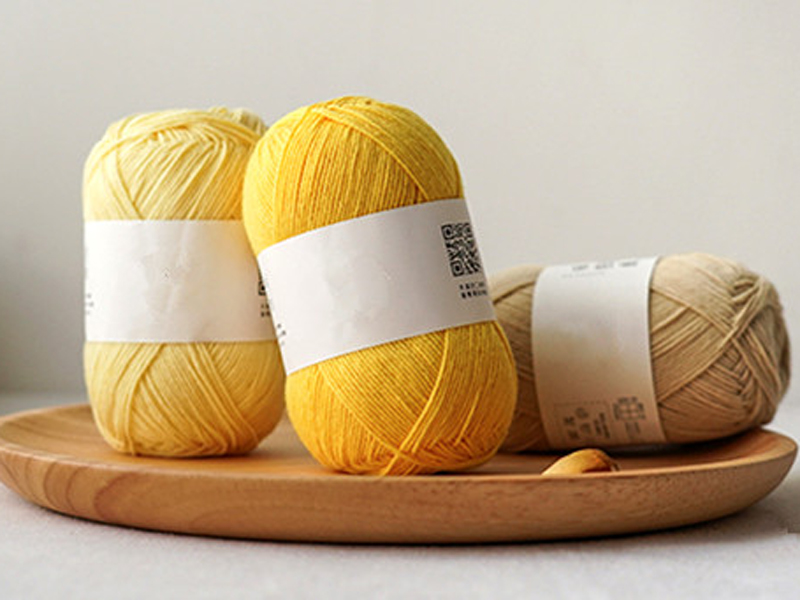

    f.-cross-ball-making-machine

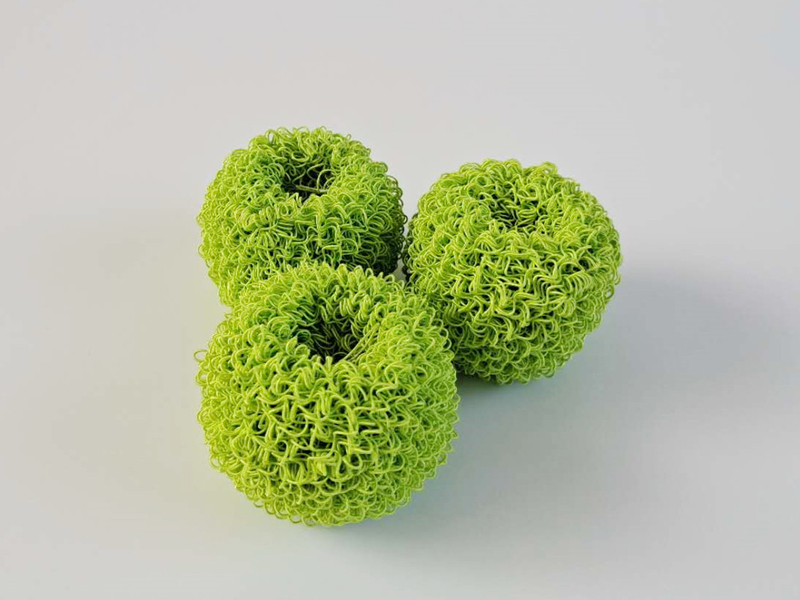

    g.-other-ball-making-machine

    Product Video

    Installation and Operation

    The equipment is easy to operate, and one worker can operate 4-8 stations at the same time. Our company provides a full set of installation and operation videos and instruction manuals to help customers standardize their use behavior. It is very easy to learn. Customers are welcomed to provide sample to test to find the most suitable machine to make proper products, saving time, saving costs, thereby increasing profit margins.

    More Choices

    For the independent controlling system type, we can do single spindle, double spindles, four spindles, five spindles or more. For the shared controlling system type, we normally do 10 or 12 spindles. We can also provide customized machinery according to your needs.
