Cost-Effective M Type 3/4 Strand Rope Twisting Machine

Short Description:

The M type rope twisting machinery is to make 3-40 mm ropes in 3 or 4 strands. Different models are available to make different sizes of ropes. The machine size is customizable according to the size of finished products and raw material.


  • Function: For rope twisting
  • Machine size: M33 & M44 & M55 & M66 & M77 & M88
  • Direction: s or z
  • Product Detail

    Product Tags

    Technical Parameters

    Model

    M88

    M77

    M66

    M55

    M44

    M33

    Speed

    300r/min

    320r/min

    350r/min

    420r/min

    620r/min

    900r/min

    Rope Diameter

    32-40mm

    26-32mm

    20-26mm

    14 -20mm

    8 -14mm

    3 -8mm

    Direction

    s/z

    s/z

    s/z

    s/z

    s/z

    s/z

    Motor power

    30KW-6

    22KW-6

    18.5KW-6

    7.5KW-6

    5.5KW-4

    4KW-4

    Dimension(m)

    14*2.1*2.1

    12*2.1* 2.1

    9.2*2.1*2.1

    7.8* 2*2

    5.2*1.9*1.9

    4.2*1.9*1.9

    Output(t/day)

    2.5-3

    1.8-2.5

    1.3-1.8

    1-1.3

    0.8-1

    0.2-0.8

    Function

    This machine is suitable to make ropes with different materials, like plastic monofilament rope, plastic flat rope, danline rope, nylon rope, film rope, jute rope, cotton rope, hemp rope, etc. It can work with the coiling machine to make the ropes into small coils.

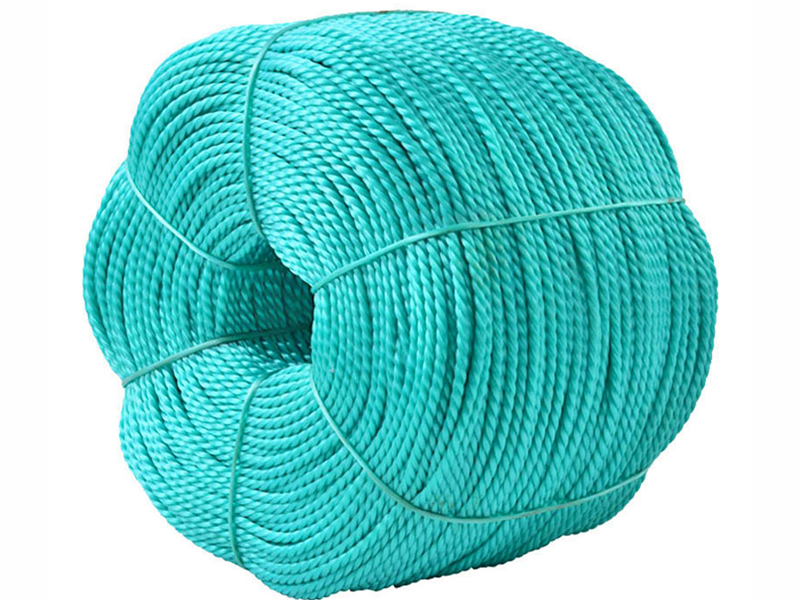

    a.-twisted-rope-making-machine

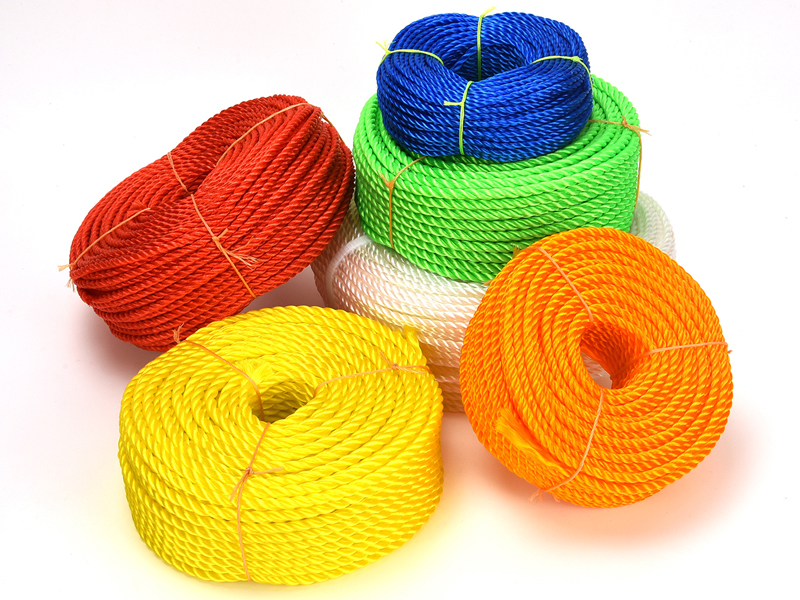

    b.-rope-twisting-machine

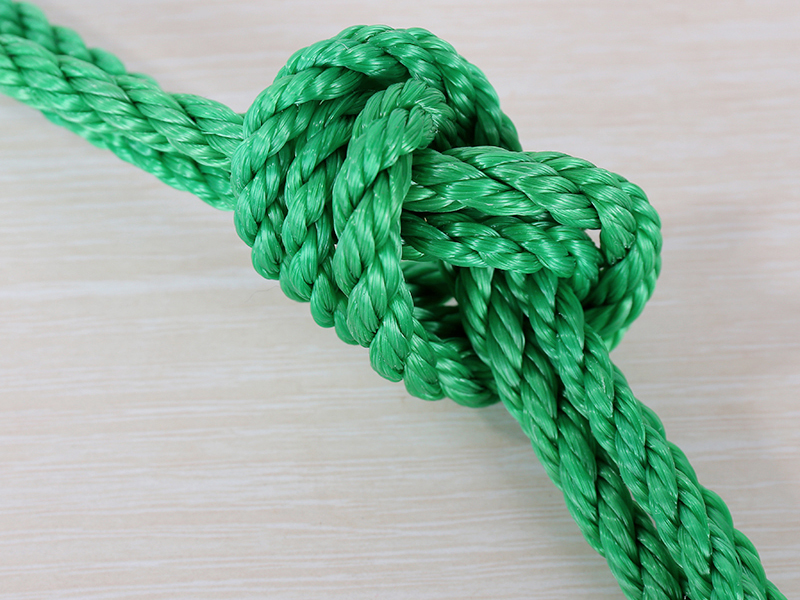

    c.-rope-twister

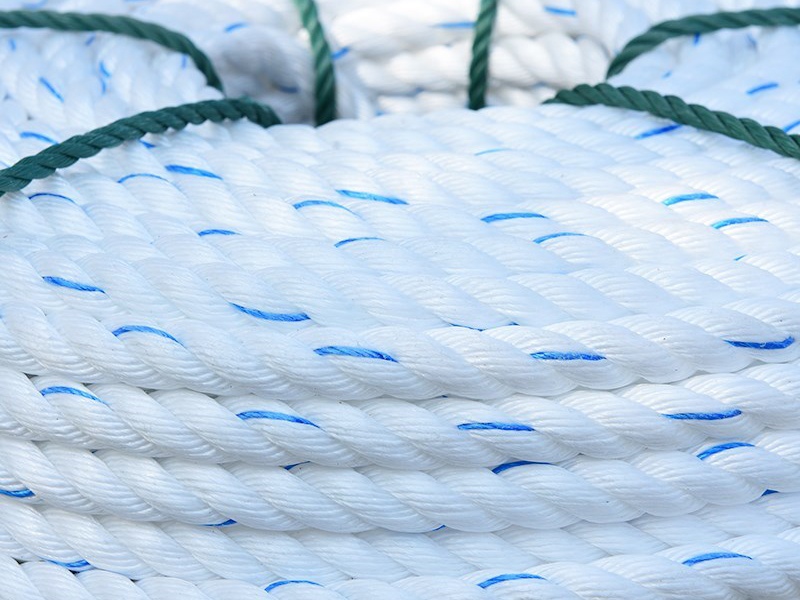

    d.-plastic-rope-making-machine

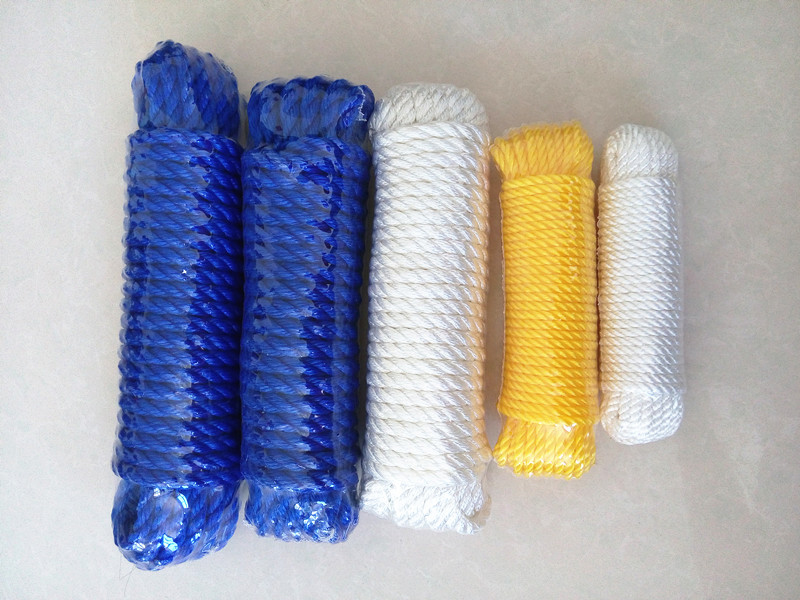

    e.-twisted-rope-making-machine

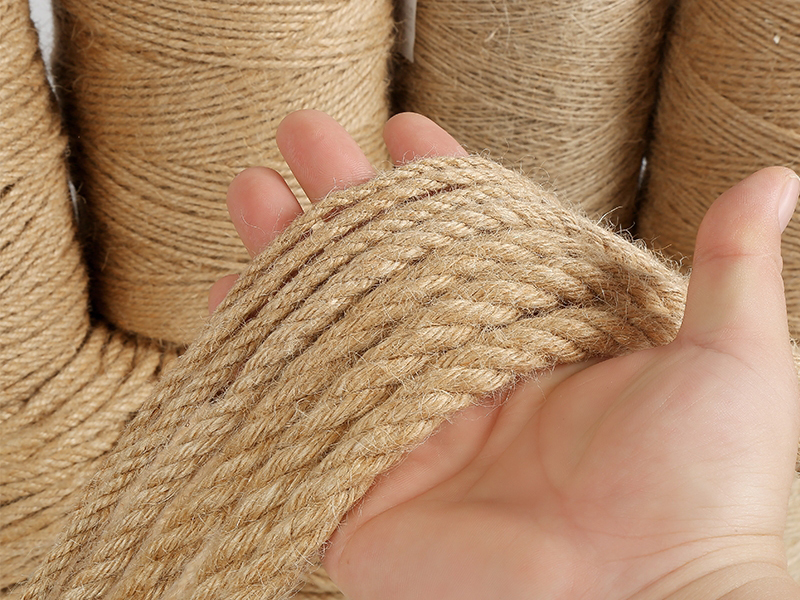

    f.-jute-rope-making-machine

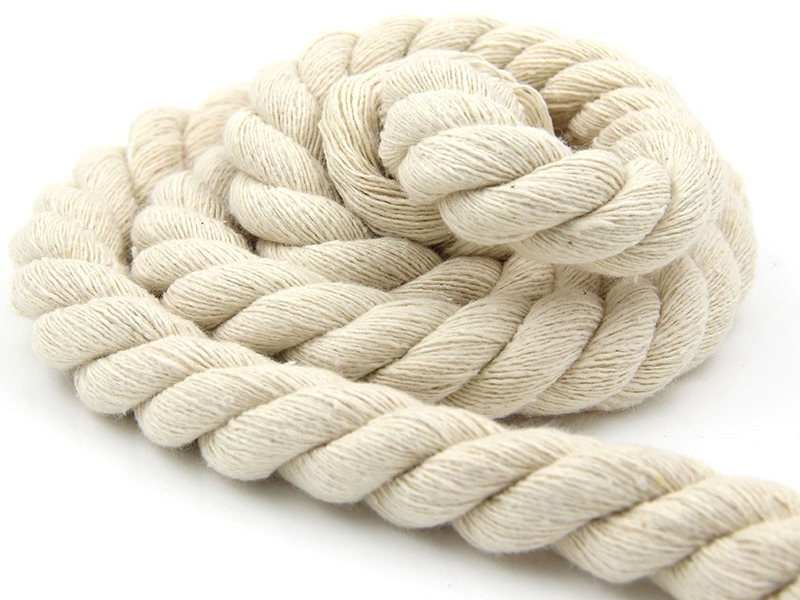

    g.-cotton-rope-making-machine

    Product Video

    Technical Improvement

    The machine replaces the machines which make ropes by two processes of single twisting and single plying separately in the past. Twisting and plying are completed on this same machine, which greatly reduces labor costs.

    Since the equipment is a high-speed rotating machine, the rope-making machine produced by our company is equipped with an induction door. Doors are switches. When the door is opened, the machine stops running; when the door is closed, the machine automatically continues to work. This effectively avoids the possible injury caused by the wrong operation of the workers, and meets the safety technical indicators.

    The twist degree of both the single twist and the twisted rope can be adjusted, and the tightness of the winding can be adjusted as well. The machine, therefore, can meet the needs of different end customers’ need.
