High Efficiency Plastic Recycling Granulator Machine

Short Description:

Plastic granulation machine is also called granulator. It is a kind of plastic recycling machine for plastic granules/grains making from waste plastic film, bags, plastic basins, plastic chairs, bottles, etc. The regenerated granules can be used for production of all types of plastic products.


  • Material: PP PE PA PC PVC PET ABS waste
  • Finished product: PP PE PA PC PVC PET ABS granules/grains
  • Product Detail

    Product Tags

    Technical Parameters

    Type

    SJ-125/S

    SJ-125/D

    SJ-150/D

    SJ-180/D

    SJ-210/D

    Screw size

    125mm

    125mm/125mm

    150mm/125mm

    150mm/150mm

    210mm/180mm

    Extruder

    Single

    Double

    Double

    Double

    Double

    Main motor power

    30kw

    22kw

    45kw

    75kw

    110kw

    11kw

    22kw

    30kw

    45kw

    Reducer

    200

    200 200

    250 225

    280 250

    325 280

    Filter

    Manual filter / electric filter

    Hydraulic filter

    Capacity

    3000kg

    3000kg

    5000kg

    8000kg

    10000kg

    Machine Size

    3000*2000*1000

    3000*2500*1500

    3500*3500*2000

    5000*4000*2000

    7000*5000*2000

    Crusher,  automatic loader, washing machine, moving silo can be provide if you need .

    Equipment and Services

    Our plastic granulation machine is to make granules by a process of crushing—washing—melting—extruding—cutting—storing. While providing automatic cleaning equipment, our company can also provide customers with factory self-built cleaning pool solutions to save transportation costs.

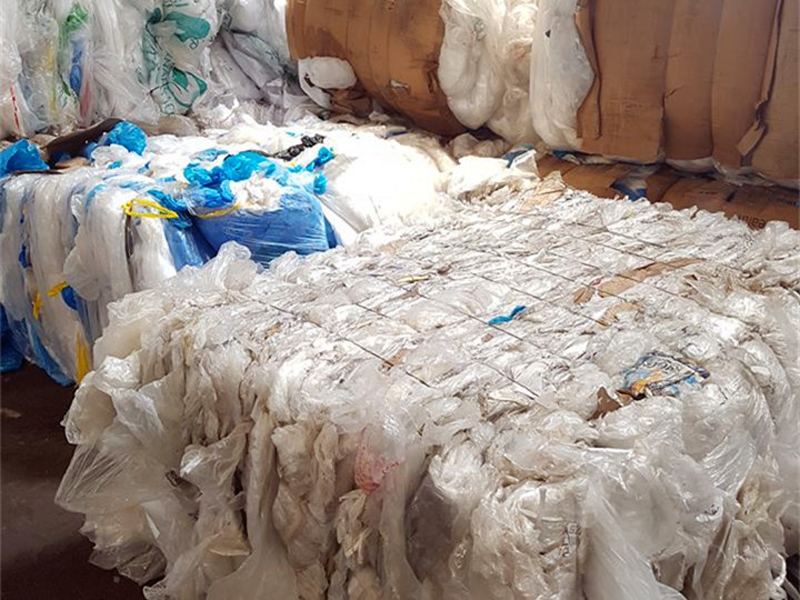

    a.Plastic-Granulation-Machine

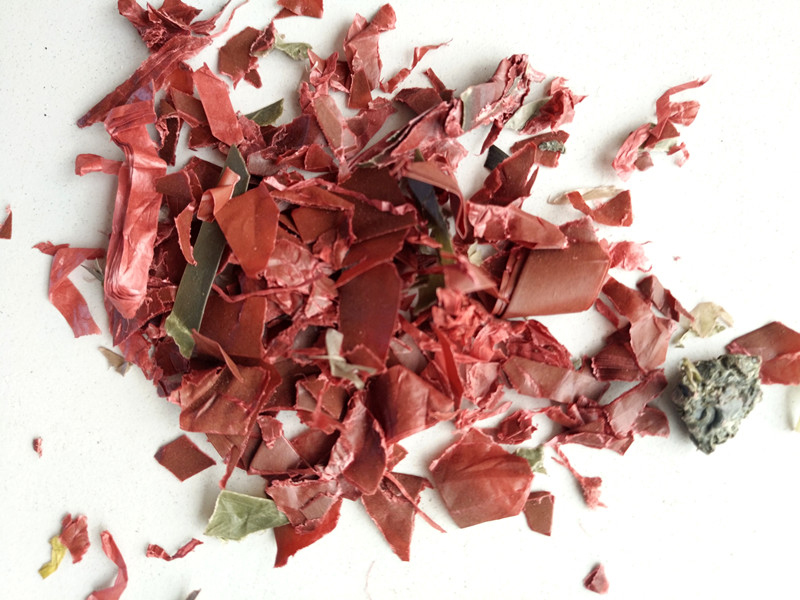

    b.Plastic-Granulation-Machine

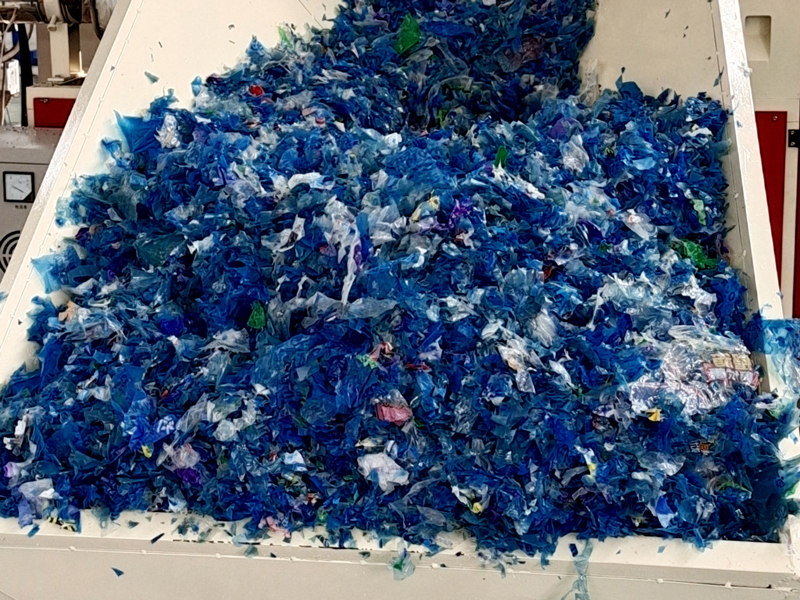

    c.Plastic-Granulation-Machine

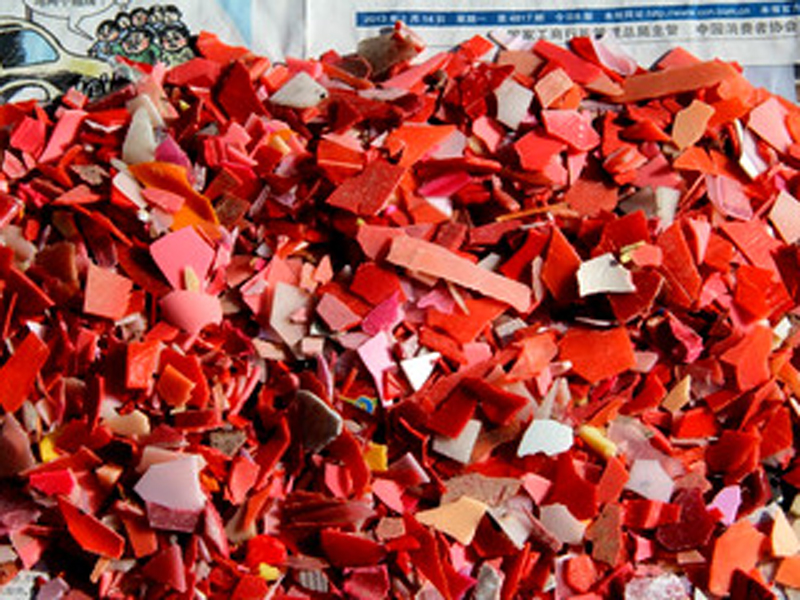

    d.Plastic-Granulation-Machine

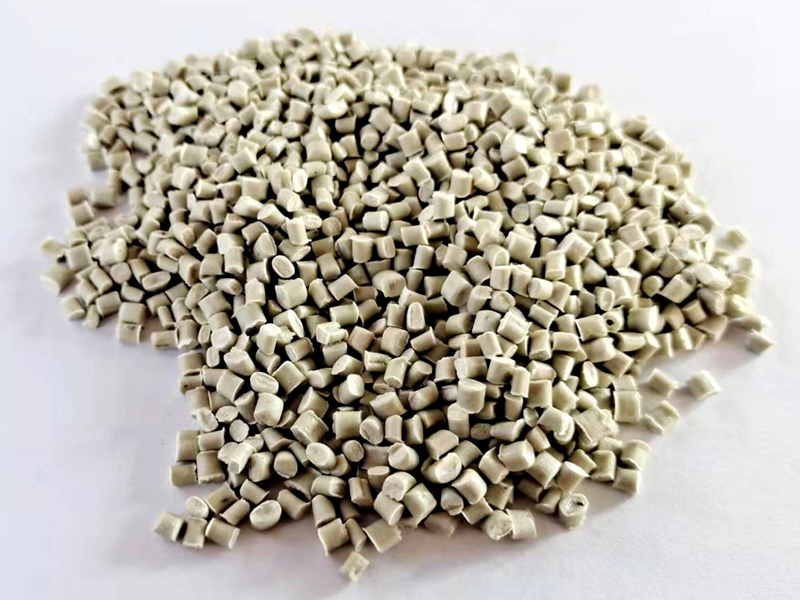

    e.Plastic-Granulation-Machine

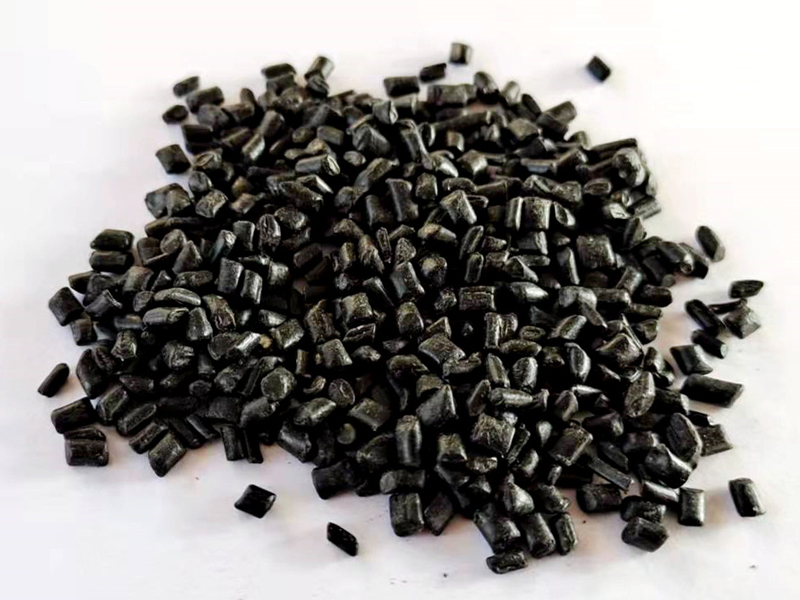

    f.Plastic-Granulation-Machine

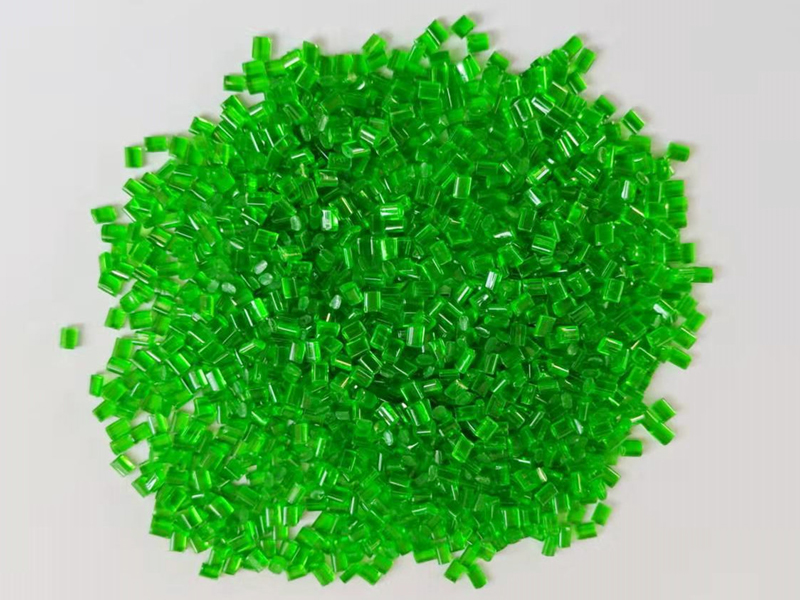

    g.Plastic-Granulation-Machine

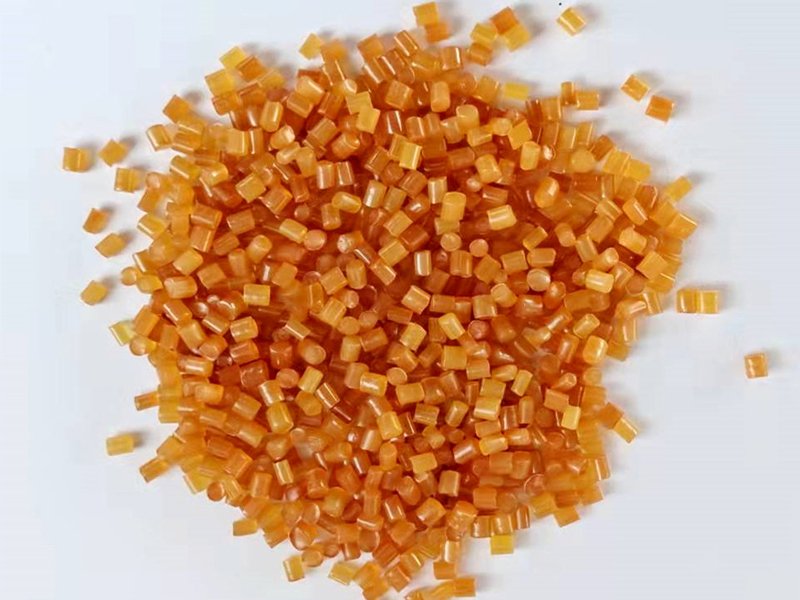

    h.Plastic-Granulation-Machine

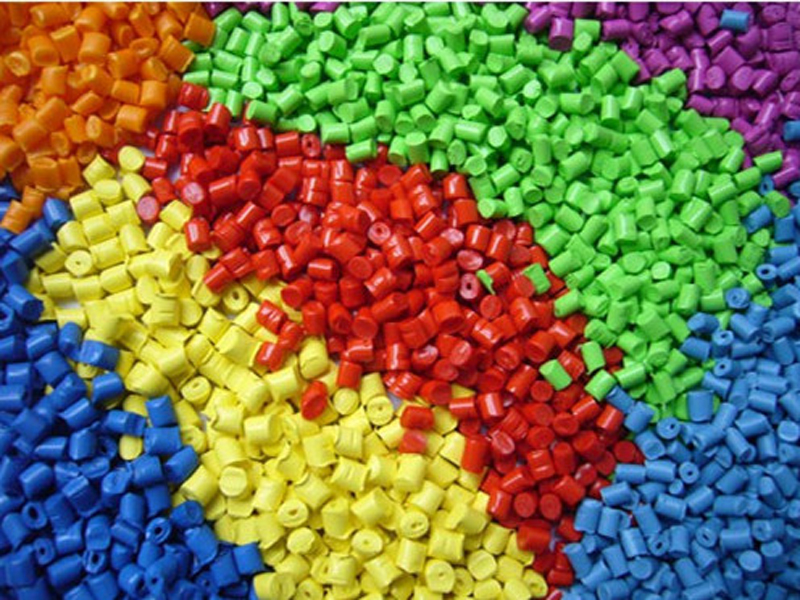

    i.Plastic-Granulation-Machine

    Product Video

    More Choices

    Our company can produce machines with equipment capacity ranging from 2 tons to 12 tons, from simple equipment to high-end machines, which can meet the requirements of most customers. The optimal solution can be designed and customized according to the customer's raw material types and production capacity requirements.

    Single-step granulator, two-step granulator and three-step granulator are optional. At the same time, in terms of equipment configuration, ceramic heating, cast aluminum heating, electromagnetic energy-saving heating are optional; electric screen changer, hydraulic single-screen screen changer, and hydraulic uninterrupted screen changer are optional. Various functions such as automatic feeding, intelligent temperature control, automatic pressure sensing slag discharge (impurities), automatic water circulation cooling, automatic material storage and other functions are optional, with a high degree of automation, helping customers to increase production and efficiency.
