Multifunction Plastic Extruder Monofilament Making Machine
Technical Parameters
| Type |
SYP(T/A)-M65 |
SYP(T/A)-M80 |
SYP(T/A)-M90 |
SYP(T/A)-M110 |
SYP(T/A)-M125 |
|
| Screw Diameter(mm) |
65 |
80 |
90 |
110 |
125 |
|
| Gross power(kw) |
90 |
100 |
130 |
150 |
170 |
|
| Actual power consumption (kw) |
40 |
50 |
65 |
70 |
85 |
|
| Productivity(kg/h) |
PP |
30-50 |
40-70 |
60-90 |
100-140 |
100-140 |
|
PET |
50-70 |
80-90 |
100-125 |
130-160 |
160-200 |
|
| Dimensions(m) |
L: 20-25, W: 2-3, H: 2-3 |
|||||
|
It can be designed according to workshop size. |
||||||
| Total weight(t) |
7.5 |
8.2 |
9.6 |
10.8 |
12.8 |
|
Function

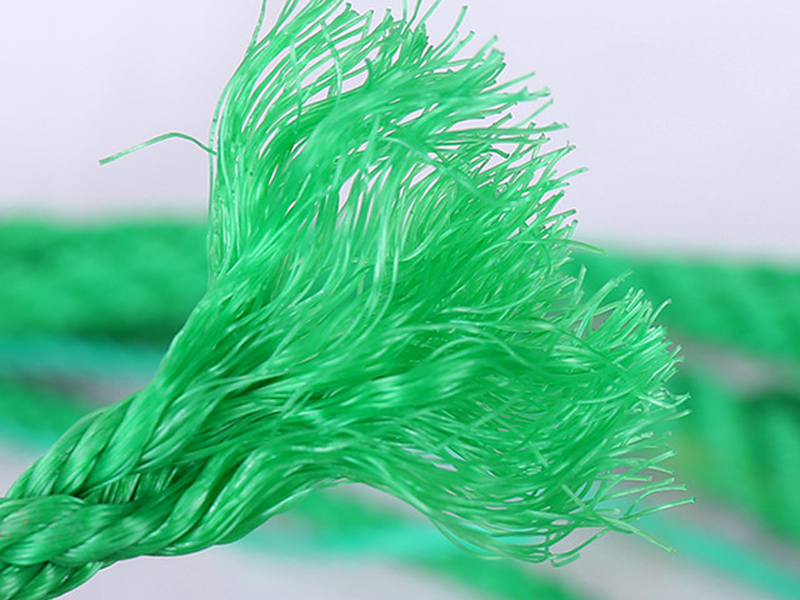

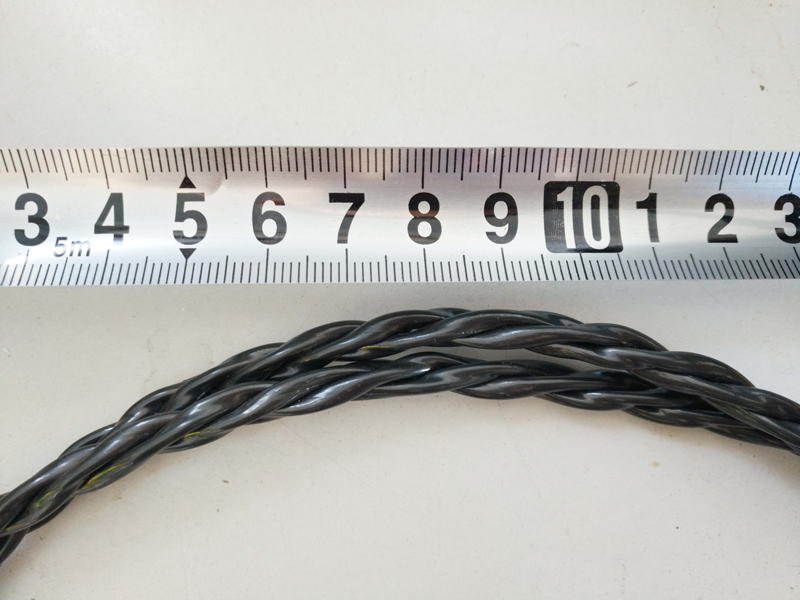

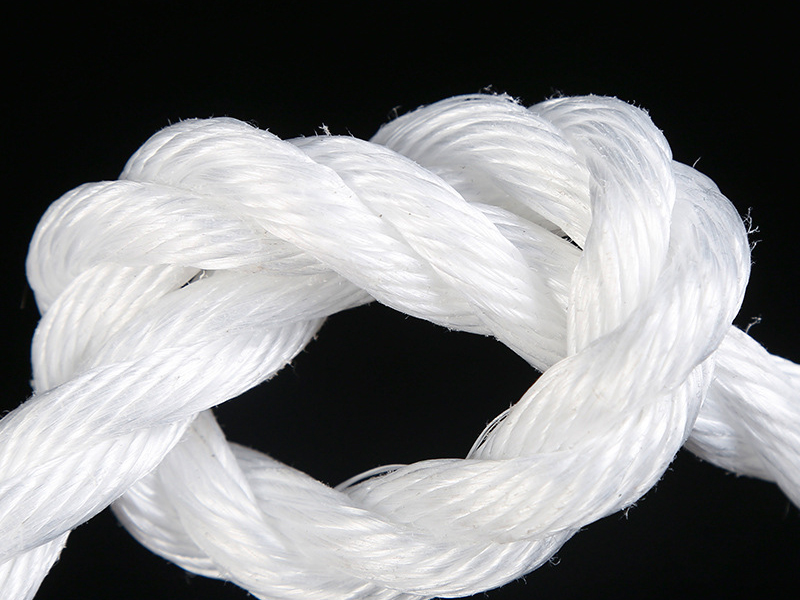

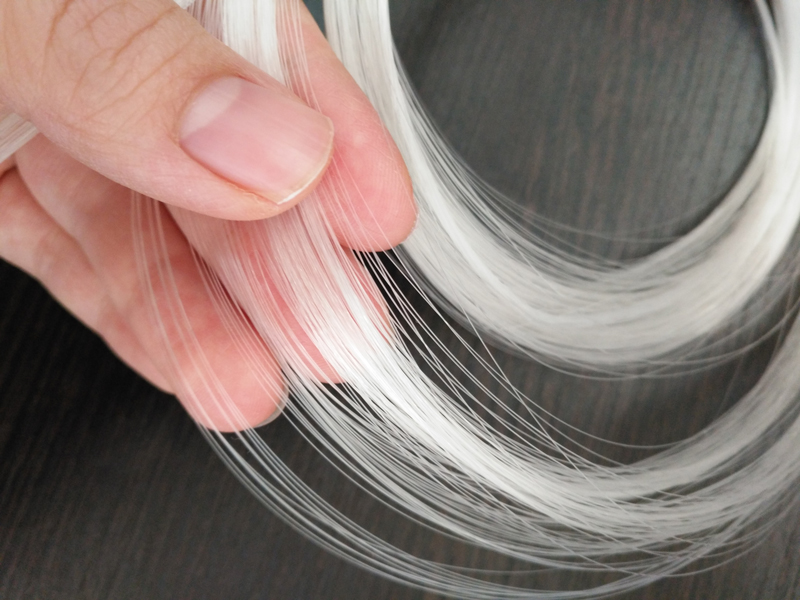

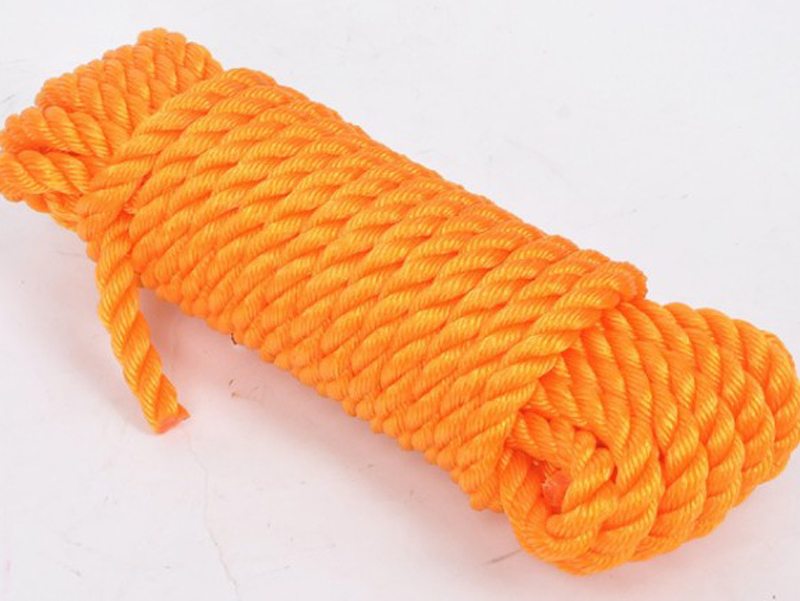

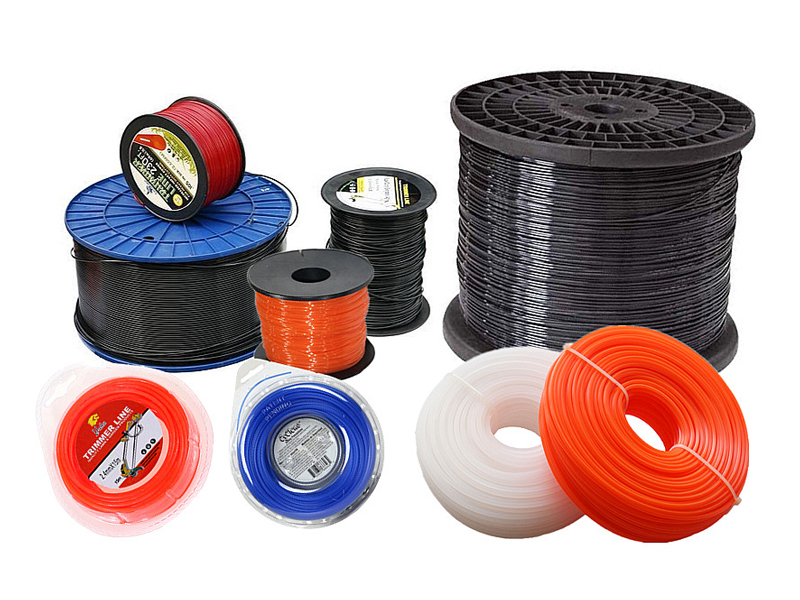

The monofilament extrusion line is widely used to make different types of filaments, like rope filament, trimmer line, fishing line, builder line, grass cutting line, safety net, fishing net, vineyard wire, etc.
Product Video
About Raw Materials
This machine is suitable for different materials like PP, PE, PET, PA. At present, PET recycled flakes are the most popular materials used by customers in most regions due to its wide source and low price of raw materials (waste water bottles) as well as strong tensile strength and anti-aging of the finished products. It is gradually replacing PP PE raw materials, but PP PE PA still has their unique advantages in making different products. For example, for trimmer lines, PA is the best choose. You can choose raw material according to the finished product requirement, material price difference and the specific needs of the local market. We will be very glad to provide suggestions.
