High-Efficiency PP Baler Twine Inflow Twister

Short Description:

Inflow twisting machine is a rope twisting and winding machine. It is a combination of twisting and winding, making twisted rope into spool ready for sell in one step. It is normally used as a component of PP baler twine production line, which is used together with pp twine extruding machine to enhance the tensile force and wear resistance of split film by twisting.


  • Function: For yarn twisting
  • For yarn twisting Rope size: 2-6mm
  • 2-6mm Direction: s or z
  • Product Detail

    Product Tags

    Technical Parameters

    Type

    TS/B200

    TS/B250

    TS/C300

    TS/C350

    Traverse Roller

    200mm

    250mm

    300mm

    350mm

    Running Speed

    1450r/min

    1450r/min

    1450r/min

    1450r/min

    Rope diameter

    2-5mm

    2-5mm

    5-20mm

    10-30mm

    Mix weight

    5kg, 9kg

    5kg, 12kg

    10kg, 20kg,

    20kg, 30kg,

    Motor

    1.5kw

    1.5kw

    1.5kw/3kw

    1.5kw/3kw

    Controller

    Weigher or counter

    Machine Size

    1100*1700*1250mm

    1100*1700*1250mm

    3080×1300×1500mm

    3380×1500×1600mm

    Function

    This machine is professionally used for the production and processing of straw baling ropes in pastures. In addition to the production of forage baling rope, inflow twister can also be used for twisting cotton rope, filling rope, pp filler rope, glass fiber rope, carbon fiber rope, etc.

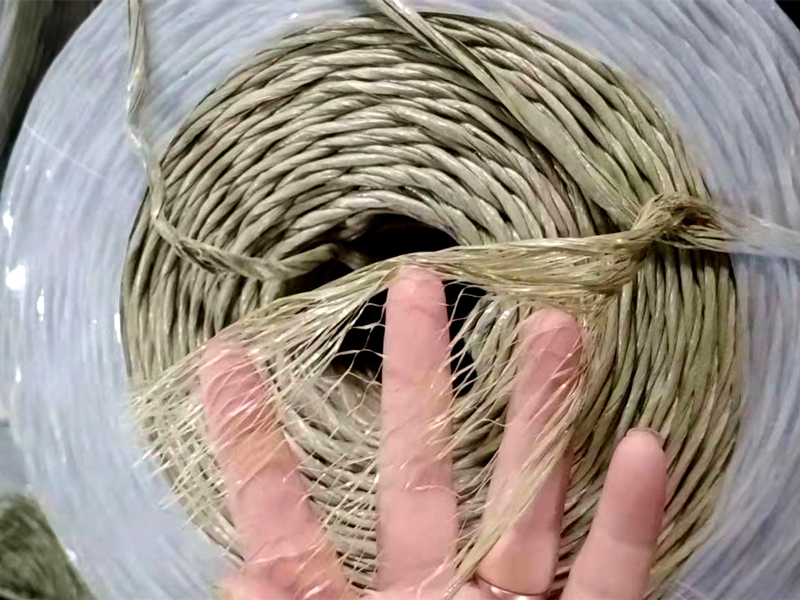

    a.-inflow-twisting-machine

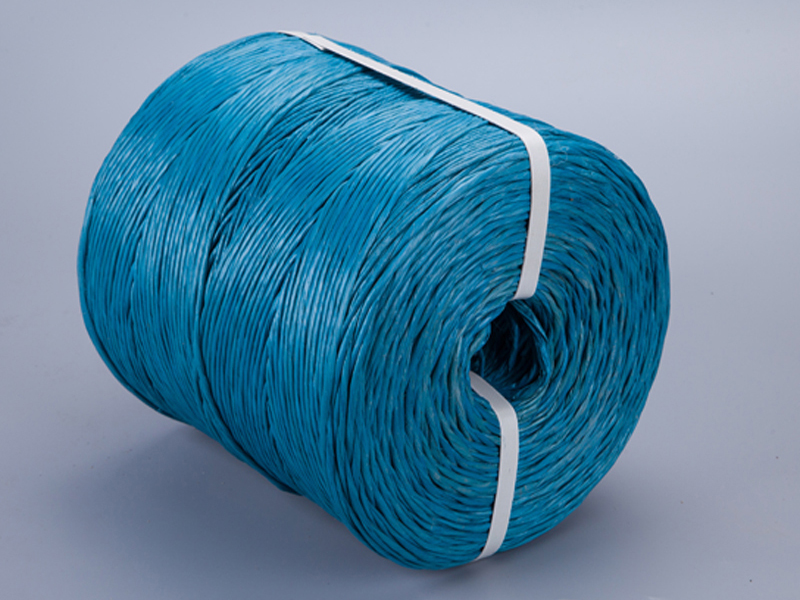

    b.-twisting-and-winding-machine

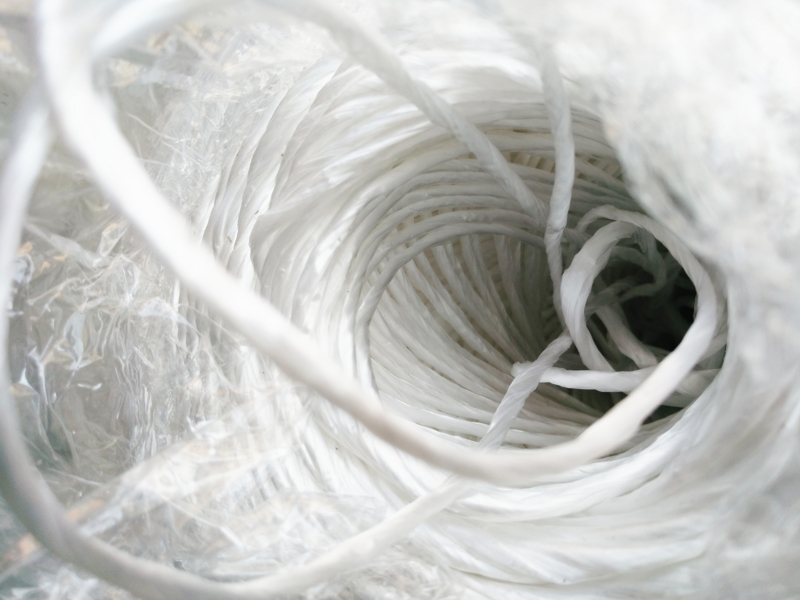

    c.-inflow-twister-machine

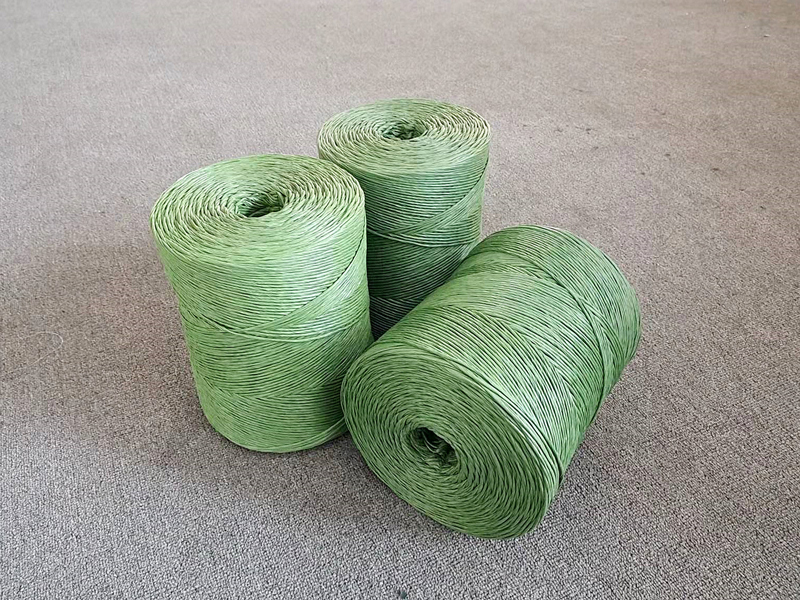

    d.-twister-and-winder

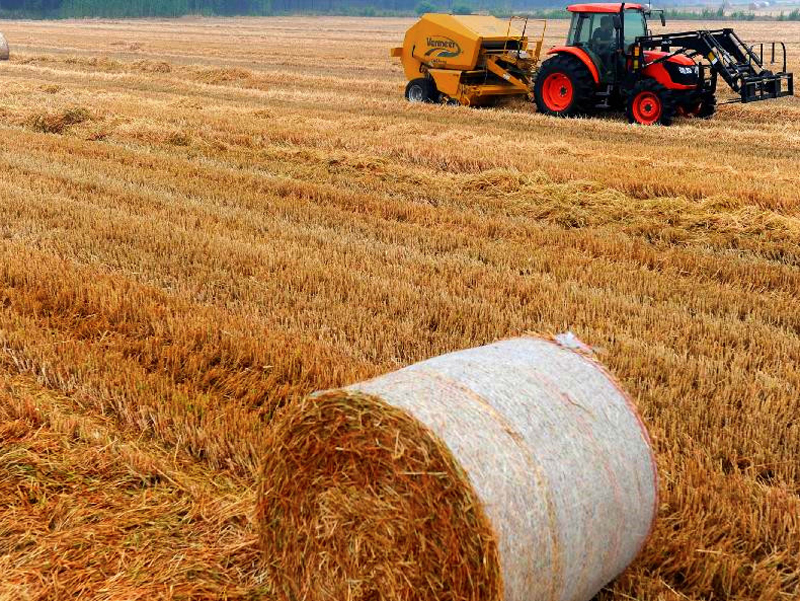

    f.-inflow-twisting-equipment

    Product Video

    Application Scenario

    In northwestern China, Central Asia, and eastern Europe, there is a huge demand and consumption of bundling ropes. These areas have vast grasslands and developed animal husbandry.

    More Choices

    The inflow twisting machine can be used to make rope bobbins in 5kg, 9kg, 10kg, 12kg by twisting and winding. The diameter of the finished twisted rope can be up to 30mm. We can also make customized machine according to customers requirement. Customers are welcomed to provide sample to test to find the most suitable machine to make proper products, saving time, saving costs, thereby increasing profit margins. Welcome to contact with us to get more details and professional advices.
